To directly send OpenTelemetry metrics and traces generated by ARMS from your AI Application to Elastic, follow the below steps.

1. Get your Credentials ​

  1. Sign in to your Elastc account.

  2. Open the side navigation and click on APM under Observability.

  3. Make sure the APM Server is running

  4. In the APM Agents section, Select OpenTelemetry and directly jump to Step 5 (Configure OpenTelemetry in your application):

  5. Copy and save the configuration value for OTEL_EXPORTER_OTLP_ENDPOINT and OTEL_EXPORTER_OTLP_HEADERS

    INFO

    Replace the space after Bearer with %20: OTEL_EXPORTER_OTLP_HEADERS="Authorization=Bearer%20[APIKEY]"

2. Instrument your application ​

SDK ​

For direct integration into your Python applications:

Function Arguments ​
python
import elsai_arms

elsai_arms.init(
  otlp_endpoint="YOUR_ELASTIC_OTEL_URL",
  otlp_headers="YOUR_ELASTIC_OTEL_AUTH"
)

Replace:

  1. YOUR_ELASTIC_OTEL_URL with the OTEL_EXPORTER_OTLP_ENDPOINT value you copied in Step 1.
    • Example: https://38xxx.apm.us-central1.gcp.cloud.es.io:443
  2. YOUR_ELASTIC_OTEL_AUTH with the OTEL_EXPORTER_OTLP_HEADERS value you copied in Step 1.
    • Example: Authorization=Bearer%20<APIKEY>
Environment Variables ​
python
import elsai_arms

elsai_arms.init()

Set these environment variables:

shell
export OTEL_EXPORTER_OTLP_ENDPOINT="YOUR_ELASTIC_OTEL_URL"
export OTEL_EXPORTER_OTLP_HEADERS="YOUR_ELASTIC_OTEL_AUTH"

Replace:

  1. YOUR_ELASTIC_OTEL_URL with the OTEL_EXPORTER_OTLP_ENDPOINT value you copied in Step 1.
    • Example: https://38xxx.apm.us-central1.gcp.cloud.es.io:443
  2. YOUR_ELASTIC_OTEL_AUTH with the OTEL_EXPORTER_OTLP_HEADERS value you copied in Step 1.
    • Example: Authorization=Bearer%20<APIKEY>

See the ARMS SDK configuration docs for more advanced options.

CLI ​

For zero-code auto-instrumentation via command line:

CLI Arguments ​
shell
# Using CLI arguments
elsai-arms-instrument \
  --otlp-endpoint "YOUR_ELASTIC_OTEL_URL" \
  --otlp-headers "YOUR_ELASTIC_OTEL_AUTH" \
  --service-name "my-ai-service" \
  --deployment-environment "production" \
  python app.py

Replace:

  1. YOUR_ELASTIC_OTEL_URL with the OTEL_EXPORTER_OTLP_ENDPOINT value you copied in Step 1.
    • Example: https://38xxx.apm.us-central1.gcp.cloud.es.io:443
  2. YOUR_ELASTIC_OTEL_AUTH with the OTEL_EXPORTER_OTLP_HEADERS value you copied in Step 1.
    • Example: Authorization=Bearer%20<APIKEY>
Environment Variables ​
shell
# Set environment variables (takes precedence over CLI args)
export OTEL_EXPORTER_OTLP_ENDPOINT="YOUR_ELASTIC_OTEL_URL"
export OTEL_EXPORTER_OTLP_HEADERS="YOUR_ELASTIC_OTEL_AUTH"
export OTEL_SERVICE_NAME="my-ai-service"
export OTEL_DEPLOYMENT_ENVIRONMENT="production"

# Run your application
elsai-arms-instrument python app.py

Replace:

  1. YOUR_ELASTIC_OTEL_URL with the OTEL_EXPORTER_OTLP_ENDPOINT value you copied in Step 1.
    • Example: https://38xxx.apm.us-central1.gcp.cloud.es.io:443
  2. YOUR_ELASTIC_OTEL_AUTH with the OTEL_EXPORTER_OTLP_HEADERS value you copied in Step 1.
    • Example: Authorization=Bearer%20<APIKEY>

See the ARMS SDK configuration docs for more advanced options.

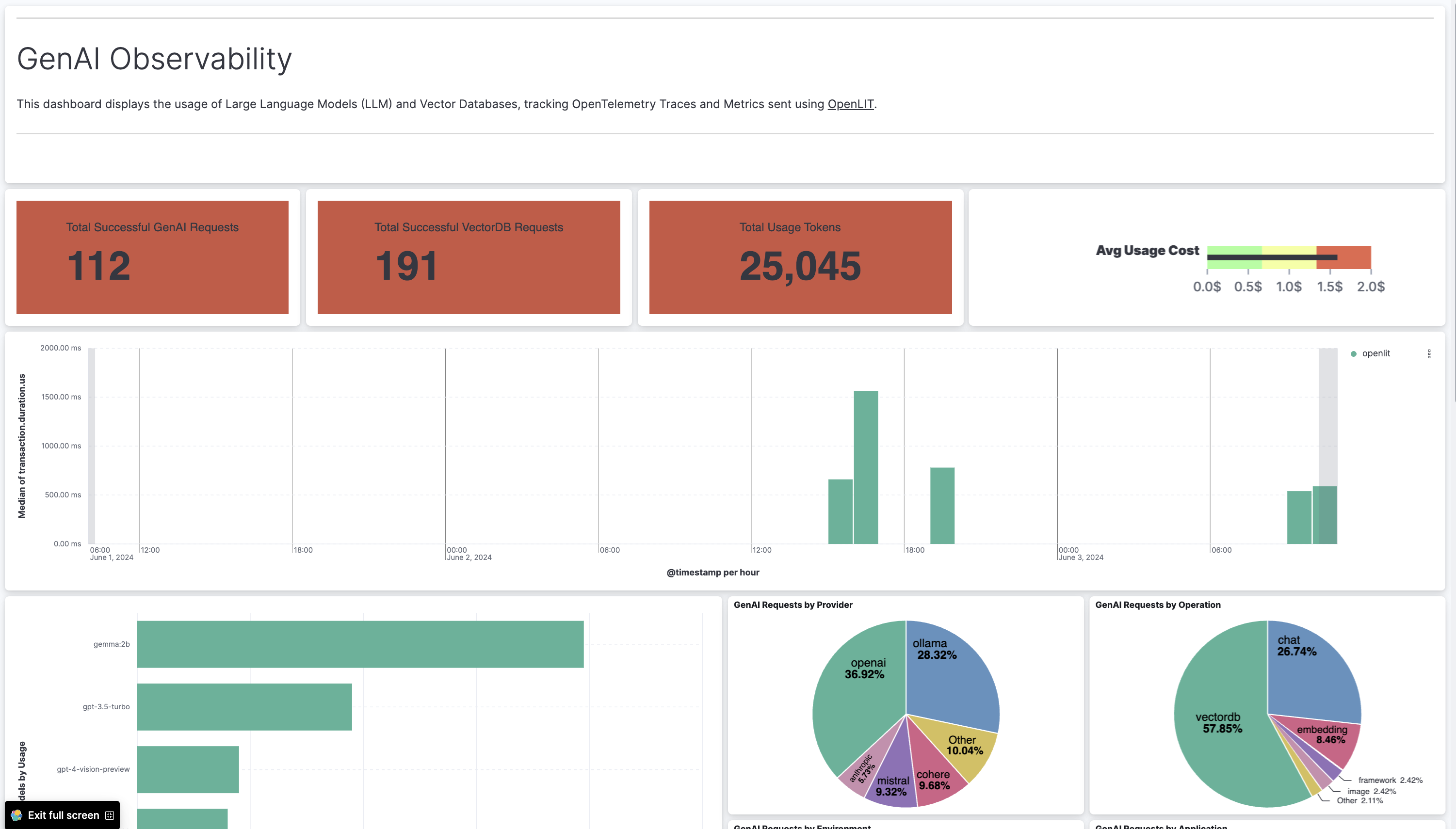

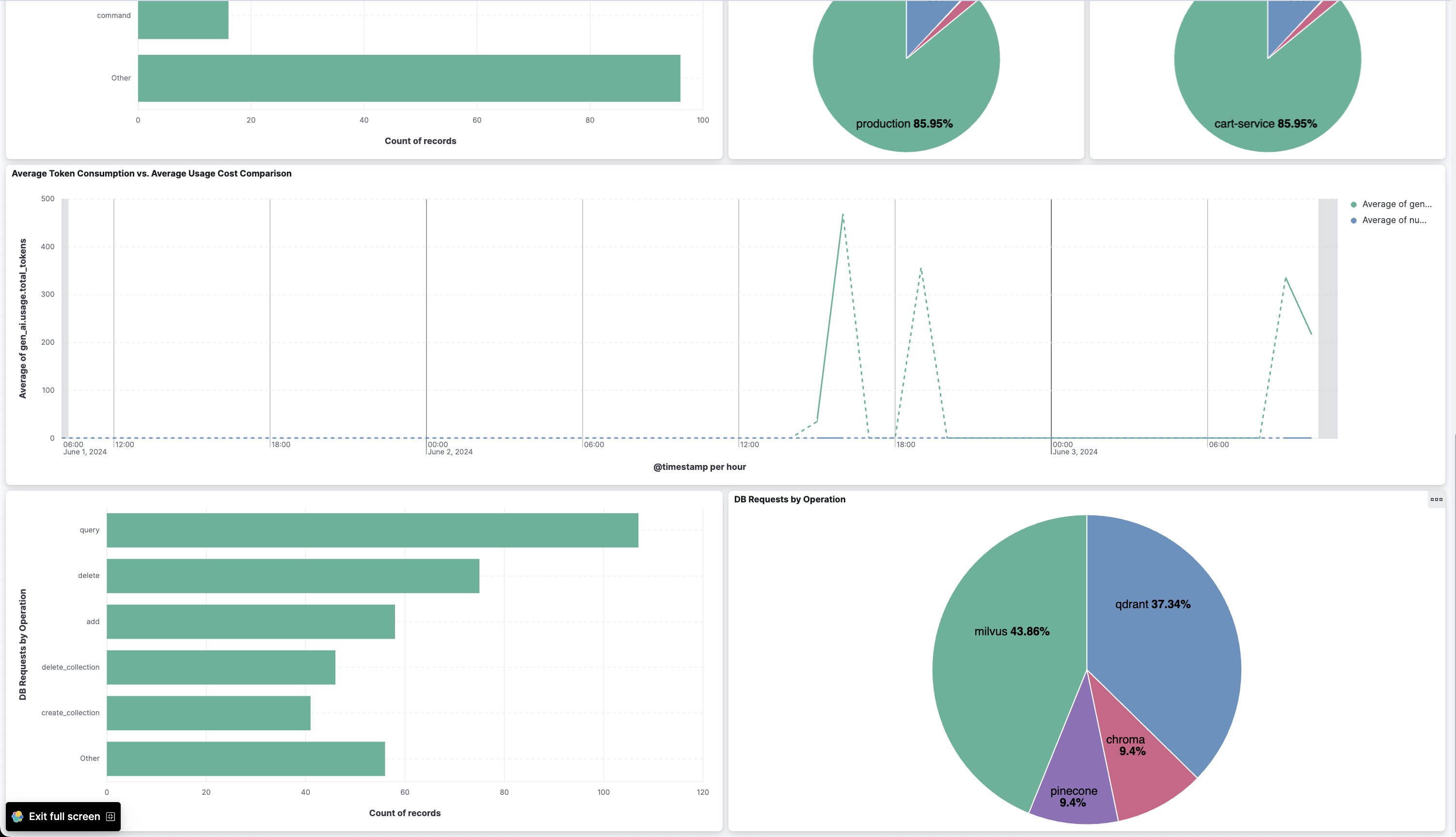

3. Import the pre-built Dashboard ​

  1. Copy the dashboard NDJSON provided in the accordion named Dashboard below and save it in a file (.ndjson).
  2. Log into your Elastic Instance.
  3. Go to Stack Management > Saved Objects.
  4. Click Import and upload your file containing the dashboard NDJSON.
  5. Click Import and you should have the dashboard available.
Dashboard
json
{"attributes":{"allowHidden":false,"allowNoIndex":true,"fieldAttrs":"{}","fieldFormatMap":"{\"trace.id\":{\"id\":\"url\",\"params\":{\"urlTemplate\":\"apm/link-to/trace/{{value}}\",\"labelTemplate\":\"{{value}}\"}},\"transaction.id\":{\"id\":\"url\",\"params\":{\"urlTemplate\":\"apm/link-to/transaction/{{value}}\",\"labelTemplate\":\"{{value}}\"}},\"transaction.duration.us\":{\"id\":\"duration\",\"params\":{\"inputFormat\":\"microseconds\",\"outputFormat\":\"asMilliseconds\",\"showSuffix\":true,\"useShortSuffix\":true,\"outputPrecision\":2,\"includeSpaceWithSuffix\":true}}}","fields":"[]","name":"APM","runtimeFieldMap":"{}","sourceFilters":"[]","timeFieldName":"@timestamp","title":"traces-apm*,apm-*,logs-apm*,apm-*,metrics-apm*,apm-*"},"coreMigrationVersion":"8.8.0","created_at":"2024-06-02T10:27:43.786Z","id":"apm_static_data_view_id_default","managed":false,"references":[],"type":"index-pattern","typeMigrationVersion":"8.0.0","updated_at":"2024-06-02T10:27:43.786Z","version":"WzUsMV0="}
{"attributes":{"color":"#a6a6fb","description":"","name":"genai"},"coreMigrationVersion":"8.8.0","created_at":"2024-06-02T11:00:42.608Z","id":"dd5a07f8-eb90-41fa-92e1-7e0535e92881","managed":false,"references":[],"type":"tag","typeMigrationVersion":"8.0.0","updated_at":"2024-06-02T11:00:42.608Z","version":"WzU5MiwxXQ=="}
{"attributes":{"description":"","kibanaSavedObjectMeta":{"searchSourceJSON":"{\"query\":{\"query\":\"\",\"language\":\"kuery\"},\"filter\":[]}"},"optionsJSON":"{\"useMargins\":true,\"syncColors\":false,\"syncCursor\":true,\"syncTooltips\":false,\"hidePanelTitles\":false}","panelsJSON":"[{\"type\":\"visualization\",\"gridData\":{\"x\":0,\"y\":0,\"w\":48,\"h\":9,\"i\":\"0ab1b11b-153c-4a27-a342-940e2253dacb\"},\"panelIndex\":\"0ab1b11b-153c-4a27-a342-940e2253dacb\",\"embeddableConfig\":{\"savedVis\":{\"id\":\"\",\"title\":\"\",\"description\":\"\",\"type\":\"markdown\",\"params\":{\"fontSize\":12,\"openLinksInNewTab\":false,\"markdown\":\"---\\n# GenAI Observability\\n\\nThis dashboard displays the usage of Large Language Models (LLM) and Vector Databases, tracking OpenTelemetry Traces and Metrics sent using [OpenLIT](https://elsai.ai).\\n\\n---\"},\"uiState\":{},\"data\":{\"aggs\":[],\"searchSource\":{\"query\":{\"query\":\"\",\"language\":\"kuery\"},\"filter\":[]}}},\"hidePanelTitles\":true,\"description\":\"\",\"enhancements\":{}},\"title\":\"\"},{\"type\":\"lens\",\"gridData\":{\"x\":0,\"y\":9,\"w\":10,\"h\":7,\"i\":\"fc9f8451-fa92-46b2-a47a-94c45a7338aa\"},\"panelIndex\":\"fc9f8451-fa92-46b2-a47a-94c45a7338aa\",\"embeddableConfig\":{\"attributes\":{\"title\":\"\",\"visualizationType\":\"lnsLegacyMetric\",\"type\":\"lens\",\"references\":[{\"type\":\"index-pattern\",\"id\":\"apm_static_data_view_id_default\",\"name\":\"indexpattern-datasource-layer-b7f3b353-d163-4371-9c4b-ae3c1a76712f\"}],\"state\":{\"visualization\":{\"layerId\":\"b7f3b353-d163-4371-9c4b-ae3c1a76712f\",\"accessor\":\"d3a9a186-1a69-4130-a4e5-d863954e517c\",\"layerType\":\"data\",\"colorMode\":\"Background\",\"palette\":{\"type\":\"palette\",\"name\":\"status\",\"params\":{\"name\":\"status\",\"reverse\":false,\"rangeType\":\"number\",\"rangeMin\":0,\"rangeMax\":1.5,\"progression\":\"fixed\",\"stops\":[{\"color\":\"#209280\",\"stop\":0},{\"color\":\"#d6bf57\",\"stop\":0.66},{\"color\":\"#cc5642\",\"stop\":1.33}],\"steps\":3,\"continuity\":\"all\",\"maxSteps\":5}}},\"query\":{\"query\":\"\",\"language\":\"kuery\"},\"filters\":[],\"datasourceStates\":{\"formBased\":{\"layers\":{\"b7f3b353-d163-4371-9c4b-ae3c1a76712f\":{\"columns\":{\"d3a9a186-1a69-4130-a4e5-d863954e517c\":{\"label\":\"Total Successful GenAI Requests\",\"dataType\":\"number\",\"operationType\":\"count\",\"isBucketed\":false,\"scale\":\"ratio\",\"sourceField\":\"gen_ai.total.requests\",\"params\":{\"format\":{\"id\":\"number\",\"params\":{\"decimals\":0}},\"emptyAsNull\":true},\"customLabel\":true}},\"columnOrder\":[\"d3a9a186-1a69-4130-a4e5-d863954e517c\"],\"incompleteColumns\":{},\"sampling\":1,\"indexPatternId\":\"apm_static_data_view_id_default\"}},\"currentIndexPatternId\":\"apm_static_data_view_id_default\"},\"indexpattern\":{\"layers\":{}},\"textBased\":{\"layers\":{}}},\"internalReferences\":[],\"adHocDataViews\":{}}},\"hidePanelTitles\":true,\"enhancements\":{}},\"title\":\"Total Successful GenAI Requests\"},{\"type\":\"lens\",\"gridData\":{\"x\":10,\"y\":9,\"w\":11,\"h\":7,\"i\":\"4230457e-9ccc-4fcd-8ae6-5942d0e86360\"},\"panelIndex\":\"4230457e-9ccc-4fcd-8ae6-5942d0e86360\",\"embeddableConfig\":{\"attributes\":{\"title\":\"\",\"visualizationType\":\"lnsLegacyMetric\",\"type\":\"lens\",\"references\":[{\"type\":\"index-pattern\",\"id\":\"apm_static_data_view_id_default\",\"name\":\"indexpattern-datasource-layer-b7f3b353-d163-4371-9c4b-ae3c1a76712f\"}],\"state\":{\"visualization\":{\"layerId\":\"b7f3b353-d163-4371-9c4b-ae3c1a76712f\",\"accessor\":\"d3a9a186-1a69-4130-a4e5-d863954e517c\",\"layerType\":\"data\",\"colorMode\":\"Background\",\"palette\":{\"type\":\"palette\",\"name\":\"status\",\"params\":{\"name\":\"status\",\"reverse\":false,\"rangeType\":\"number\",\"rangeMin\":0,\"rangeMax\":1.5,\"progression\":\"fixed\",\"stops\":[{\"color\":\"#209280\",\"stop\":0},{\"color\":\"#d6bf57\",\"stop\":0.66},{\"color\":\"#cc5642\",\"stop\":1.33}],\"steps\":3,\"continuity\":\"all\",\"maxSteps\":5}}},\"query\":{\"query\":\"\",\"language\":\"kuery\"},\"filters\":[],\"datasourceStates\":{\"formBased\":{\"layers\":{\"b7f3b353-d163-4371-9c4b-ae3c1a76712f\":{\"columns\":{\"d3a9a186-1a69-4130-a4e5-d863954e517c\":{\"label\":\"Total Successful VectorDB Requests\",\"dataType\":\"number\",\"operationType\":\"count\",\"isBucketed\":false,\"scale\":\"ratio\",\"sourceField\":\"db.total.requests\",\"params\":{\"format\":{\"id\":\"number\",\"params\":{\"decimals\":0}},\"emptyAsNull\":true},\"customLabel\":true}},\"columnOrder\":[\"d3a9a186-1a69-4130-a4e5-d863954e517c\"],\"incompleteColumns\":{},\"sampling\":1,\"indexPatternId\":\"apm_static_data_view_id_default\"}},\"currentIndexPatternId\":\"apm_static_data_view_id_default\"},\"indexpattern\":{\"layers\":{}},\"textBased\":{\"layers\":{}}},\"internalReferences\":[],\"adHocDataViews\":{}}},\"hidePanelTitles\":true,\"enhancements\":{}},\"title\":\"Total Successful GenAI Requests\"},{\"type\":\"lens\",\"gridData\":{\"x\":21,\"y\":9,\"w\":11,\"h\":7,\"i\":\"921e9588-c4f9-48f2-8842-fb94fa871789\"},\"panelIndex\":\"921e9588-c4f9-48f2-8842-fb94fa871789\",\"embeddableConfig\":{\"attributes\":{\"title\":\"\",\"visualizationType\":\"lnsLegacyMetric\",\"type\":\"lens\",\"references\":[{\"type\":\"index-pattern\",\"id\":\"apm_static_data_view_id_default\",\"name\":\"indexpattern-datasource-layer-b7f3b353-d163-4371-9c4b-ae3c1a76712f\"}],\"state\":{\"visualization\":{\"layerId\":\"b7f3b353-d163-4371-9c4b-ae3c1a76712f\",\"accessor\":\"d3a9a186-1a69-4130-a4e5-d863954e517c\",\"layerType\":\"data\",\"colorMode\":\"Background\",\"palette\":{\"type\":\"palette\",\"name\":\"status\",\"params\":{\"name\":\"status\",\"reverse\":false,\"rangeType\":\"number\",\"rangeMin\":0,\"rangeMax\":1.5,\"progression\":\"fixed\",\"stops\":[{\"color\":\"#209280\",\"stop\":0},{\"color\":\"#d6bf57\",\"stop\":0.66},{\"color\":\"#cc5642\",\"stop\":1.33}],\"steps\":3,\"continuity\":\"all\",\"maxSteps\":5}}},\"query\":{\"query\":\"\",\"language\":\"kuery\"},\"filters\":[],\"datasourceStates\":{\"formBased\":{\"layers\":{\"b7f3b353-d163-4371-9c4b-ae3c1a76712f\":{\"columns\":{\"d3a9a186-1a69-4130-a4e5-d863954e517c\":{\"label\":\"Total Usage Tokens\",\"dataType\":\"number\",\"operationType\":\"sum\",\"sourceField\":\"gen_ai.usage.total_tokens\",\"isBucketed\":false,\"scale\":\"ratio\",\"params\":{\"format\":{\"id\":\"number\",\"params\":{\"decimals\":0}},\"emptyAsNull\":true},\"customLabel\":true}},\"columnOrder\":[\"d3a9a186-1a69-4130-a4e5-d863954e517c\"],\"incompleteColumns\":{},\"sampling\":1,\"indexPatternId\":\"apm_static_data_view_id_default\"}},\"currentIndexPatternId\":\"apm_static_data_view_id_default\"},\"indexpattern\":{\"layers\":{}},\"textBased\":{\"layers\":{}}},\"internalReferences\":[],\"adHocDataViews\":{}}},\"hidePanelTitles\":true,\"enhancements\":{}},\"title\":\"Total Successful GenAI Requests\"},{\"type\":\"lens\",\"gridData\":{\"x\":32,\"y\":9,\"w\":16,\"h\":7,\"i\":\"4fc53e67-90b4-45a2-9eb2-7c7daadcff6e\"},\"panelIndex\":\"4fc53e67-90b4-45a2-9eb2-7c7daadcff6e\",\"embeddableConfig\":{\"attributes\":{\"title\":\"\",\"visualizationType\":\"lnsGauge\",\"type\":\"lens\",\"references\":[{\"type\":\"index-pattern\",\"id\":\"apm_static_data_view_id_default\",\"name\":\"indexpattern-datasource-layer-cedecfe6-b308-4a3b-8d5d-b3856f68bc5c\"}],\"state\":{\"visualization\":{\"shape\":\"horizontalBullet\",\"layerId\":\"cedecfe6-b308-4a3b-8d5d-b3856f68bc5c\",\"layerType\":\"data\",\"ticksPosition\":\"auto\",\"labelMajorMode\":\"auto\",\"metricAccessor\":\"13325455-54c7-4511-97bc-b40379cde51c\",\"palette\":{\"name\":\"custom\",\"type\":\"palette\",\"params\":{\"steps\":3,\"name\":\"custom\",\"reverse\":false,\"rangeType\":\"percent\",\"rangeMin\":null,\"rangeMax\":null,\"progression\":\"fixed\",\"stops\":[{\"color\":\"#00ff0080\",\"stop\":33.33},{\"color\":\"#eaff0080\",\"stop\":66.66},{\"color\":\"#E7664C\",\"stop\":100}],\"colorStops\":[{\"color\":\"#00ff0080\",\"stop\":null},{\"color\":\"#eaff0080\",\"stop\":33.33},{\"color\":\"#E7664C\",\"stop\":66.66}],\"continuity\":\"all\",\"maxSteps\":5}},\"colorMode\":\"palette\"},\"query\":{\"query\":\"\",\"language\":\"kuery\"},\"filters\":[],\"datasourceStates\":{\"formBased\":{\"layers\":{\"cedecfe6-b308-4a3b-8d5d-b3856f68bc5c\":{\"columns\":{\"13325455-54c7-4511-97bc-b40379cde51c\":{\"label\":\"Avg Usage Cost\",\"dataType\":\"number\",\"operationType\":\"average\",\"sourceField\":\"gen_ai.usage.cost\",\"isBucketed\":false,\"scale\":\"ratio\",\"params\":{\"emptyAsNull\":true,\"format\":{\"id\":\"number\",\"params\":{\"decimals\":1,\"suffix\":\"$\",\"compact\":false}}},\"customLabel\":true}},\"columnOrder\":[\"13325455-54c7-4511-97bc-b40379cde51c\"],\"incompleteColumns\":{},\"sampling\":1,\"indexPatternId\":\"apm_static_data_view_id_default\"}},\"currentIndexPatternId\":\"apm_static_data_view_id_default\"},\"indexpattern\":{\"layers\":{}},\"textBased\":{\"layers\":{}}},\"internalReferences\":[],\"adHocDataViews\":{}}},\"hidePanelTitles\":true,\"enhancements\":{}},\"title\":\"\"}]","timeRestore":false,"title":"GenAI Observability","version":1},"coreMigrationVersion":"8.8.0","created_at":"2024-06-03T04:45:39.460Z","id":"e6384f67-5e58-43f2-b2a2-44c16e207dbd","managed":false,"references":[{"id":"apm_static_data_view_id_default","name":"fc9f8451-fa92-46b2-a47a-94c45a7338aa:indexpattern-datasource-layer-b7f3b353-d163-4371-9c4b-ae3c1a76712f","type":"index-pattern"},{"id":"apm_static_data_view_id_default","name":"4230457e-9ccc-4fcd-8ae6-5942d0e86360:indexpattern-datasource-layer-b7f3b353-d163-4371-9c4b-ae3c1a76712f","type":"index-pattern"},{"id":"apm_static_data_view_id_default","name":"921e9588-c4f9-48f2-8842-fb94fa871789:indexpattern-datasource-layer-b7f3b353-d163-4371-9c4b-ae3c1a76712f","type":"index-pattern"},{"id":"apm_static_data_view_id_default","name":"4fc53e67-90b4-45a2-9eb2-7c7daadcff6e:indexpattern-datasource-layer-cedecfe6-b308-4a3b-8d5d-b3856f68bc5c","type":"index-pattern"},{"id":"dd5a07f8-eb90-41fa-92e1-7e0535e92881","name":"tag-ref-dd5a07f8-eb90-41fa-92e1-7e0535e92881","type":"tag"}],"type":"dashboard","typeMigrationVersion":"8.9.0","updated_at":"2024-06-03T04:45:39.460Z","version":"WzE3MSwxXQ=="}
{"excludedObjects":[],"excludedObjectsCount":0,"exportedCount":3,"missingRefCount":0,"missingReferences":[]}
